BMW 20-pin to 16-pin OBD2 Diagnostic Adapter Cable for Vehicle Scanning

This specialised adapter cable serves as a critical interface for automotive diagnostics, specifically designed to connect modern On-Board Diagnostic II (OBD2) tools to a generation of BMW vehicles that utilise a proprietary 20-pin diagnostic socket. It solves a common compatibility issue faced by mechanics, technicians, and DIY enthusiasts who own a standard 16-pin OBD2 scanner but need to access the diagnostic systems of applicable older BMW models such as the E38, E39, E46, and E53 series. By providing a physical bridge between the two connector types, this single cable enables a wide range of diagnostic functions, from reading engine fault codes and live data to performing system tests, all without requiring expensive, brand-specific diagnostic hardware.

Features and Construction

This adapter is built with a clear purpose: to translate a physical connection so data can flow between your vehicle and your tool. Its construction is focused on reliable signal transmission and a secure fit.

Material and Build

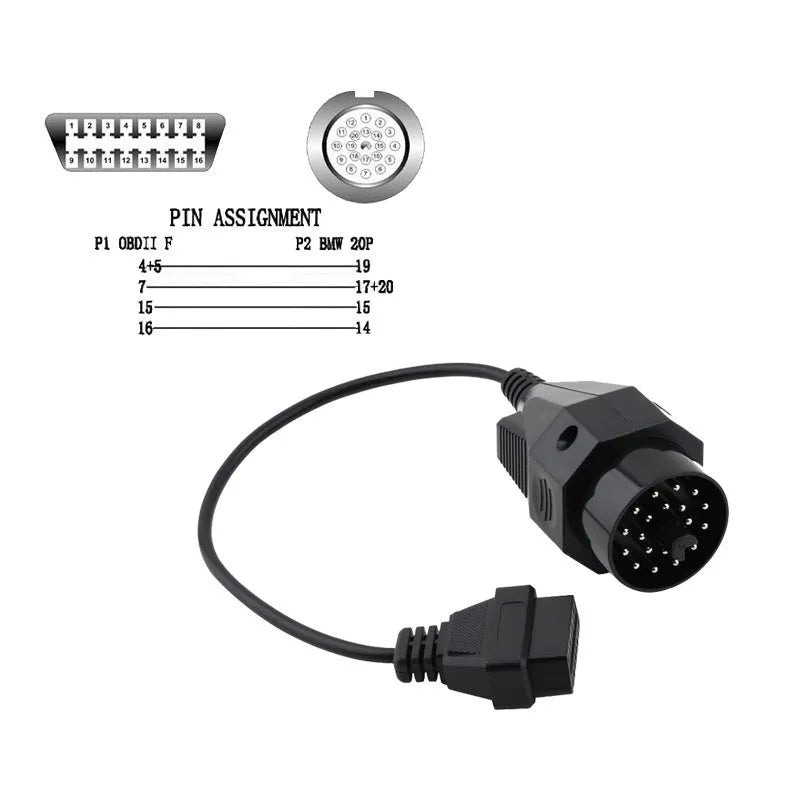

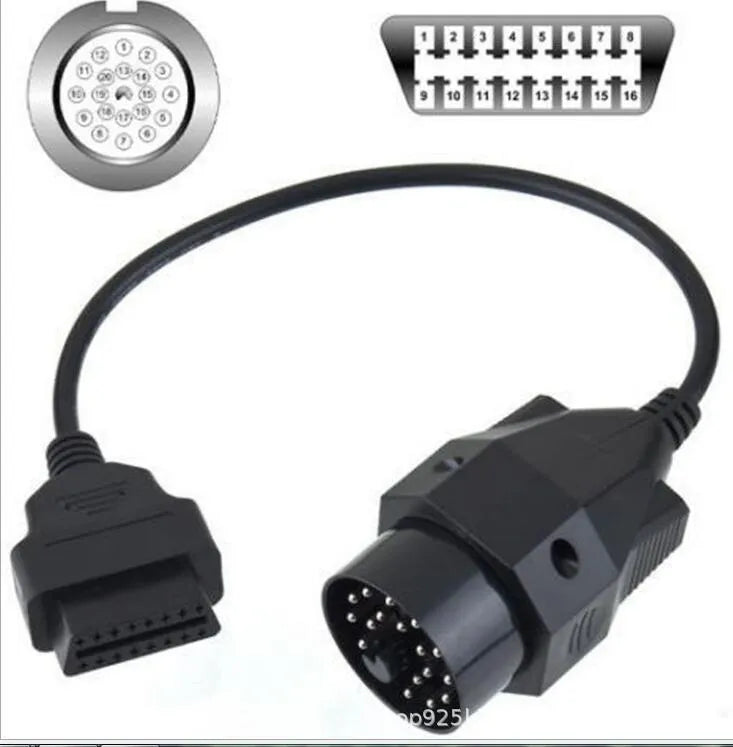

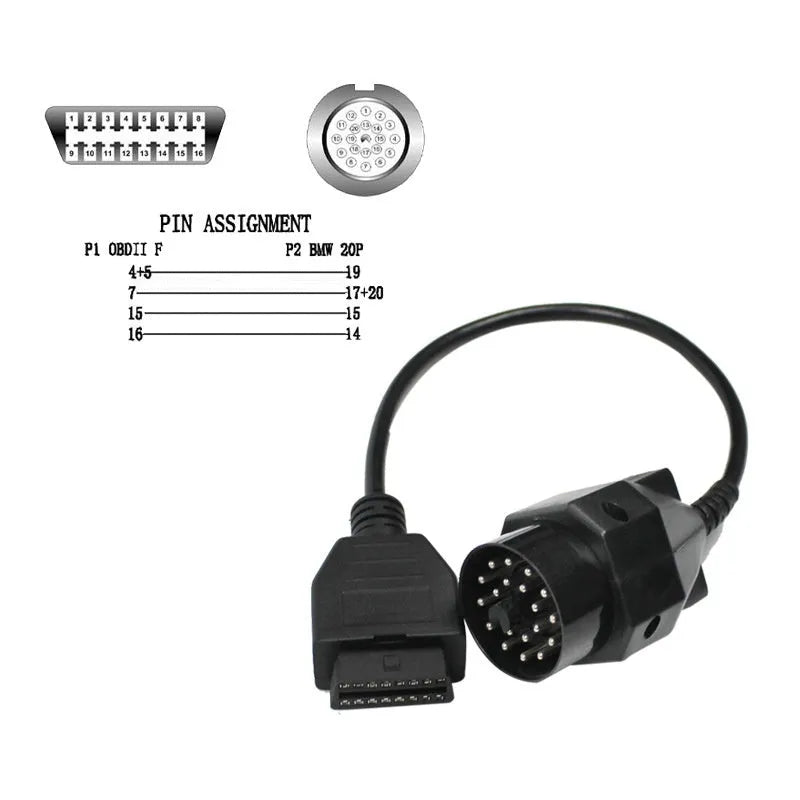

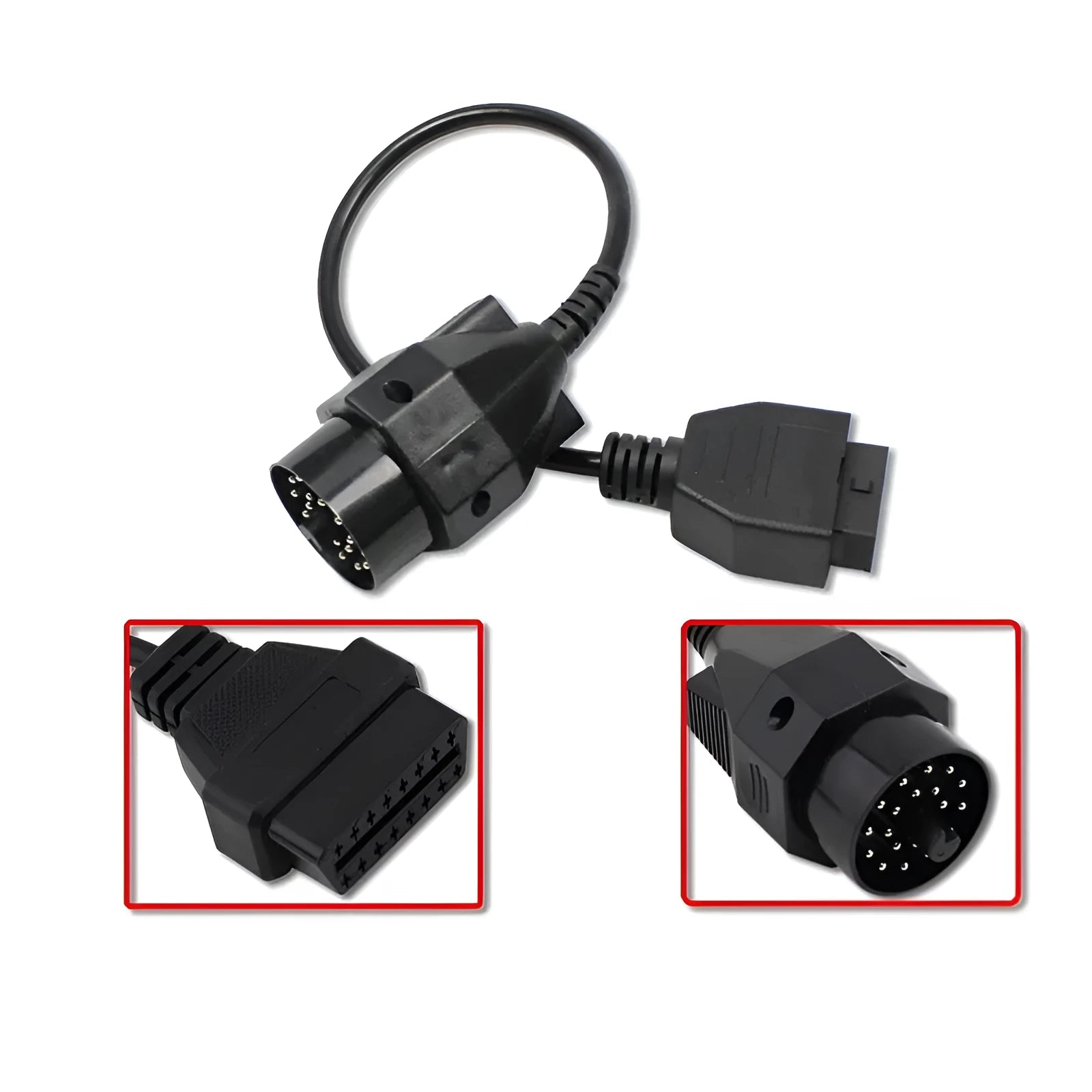

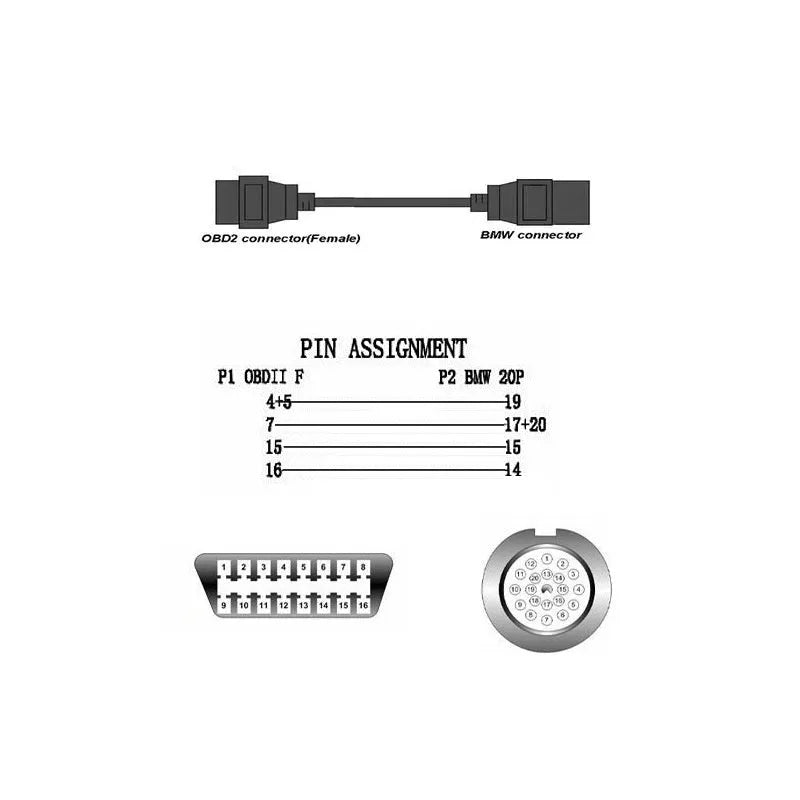

The cable is constructed using insulated copper conductors housed within a durable outer sheath, designed to carry the electrical signals necessary for diagnostic communication. The connector ends feature moulded plastic housings that protect the internal pin contacts. The 20-pin male connector is shaped and keyed to match the BMW-specific port, ensuring a correct and secure insertion. The 16-pin female socket conforms to the standard OBD2 (DLC) layout, allowing compatibility with a vast array of generic scan tools and code readers available on the market.

Size and Practical Fit

The product is supplied as a single connecting cable of a practical length, facilitating connection between the vehicle's diagnostic port, often located in the engine bay or under the dashboard, and the scanner held by the user. The design prioritises a direct, uncomplicated signal path without unnecessary length or complex electronics that could introduce signal issues. It is engineered for an operating temperature of up to 45 degrees Celsius, covering typical environmental conditions encountered during garage or roadside diagnostics.

Uses and Placement

This adapter unlocks diagnostic capability for a specific set of vehicles. Its use is straightforward but targeted, making it an essential tool for certain BMW owners and workshops.

Event or Professional Use

For professional mechanics and independent garages, this adapter is a cost-effective piece of workshop equipment. It allows a single, standard OBD2 diagnostic station or handheld tool to service both modern vehicles and older BMWs, increasing the utility of existing hardware without investing in multiple manufacturer-specific interfaces. It is particularly useful for fault diagnosis, pre-purchase inspections, and emissions testing on relevant BMW models, streamlining the workflow for technicians familiar with common OBD2 protocols.

Everyday Home Use

For the BMW owner who prefers to perform their own basic vehicle maintenance and troubleshooting, this adapter makes advanced diagnostics accessible. Paired with an affordable Bluetooth OBD2 adapter and a smartphone app, it enables the user to read and clear check engine lights, monitor sensor data, and log parameters—tasks that were previously restricted to dealerships or specialist garages for these older BMWs. It turns a generic tool into a BMW-capable one for a wide range of DIY diagnostic projects.

Benefits and Buying Value

The value of this product lies in its specific functionality and the practical problems it resolves for a defined user group.

Reuse and Low Maintenance

The adapter has no moving parts or internal software requiring updates, contributing to a low-maintenance profile. Its passive design means it requires no external power or configuration; it simply reroutes connections. This allows your existing investment in a 16-pin OBD2 scanner to be reused and extended to cover a valuable segment of older BMW vehicles, protecting the utility of your diagnostic tool as your needs or client base changes.

Why Choose This Product

You would choose this BMW OBD2 adapter cable if you need a reliable, physical interface to connect standard diagnostic equipment to BMWs with a 20-pin port. Its value is its singular focus on solving that specific compatibility gap with a dedicated, correctly pinned cable. It provides a direct alternative to searching for rare or expensive BMW-specific scanners, offering a simpler path to obtaining the diagnostic data needed for informed repairs and maintenance on applicable models.
