35mm Hinge Punch Locator Tool with Adjustable Margin Settings for Cabinet Door Installation

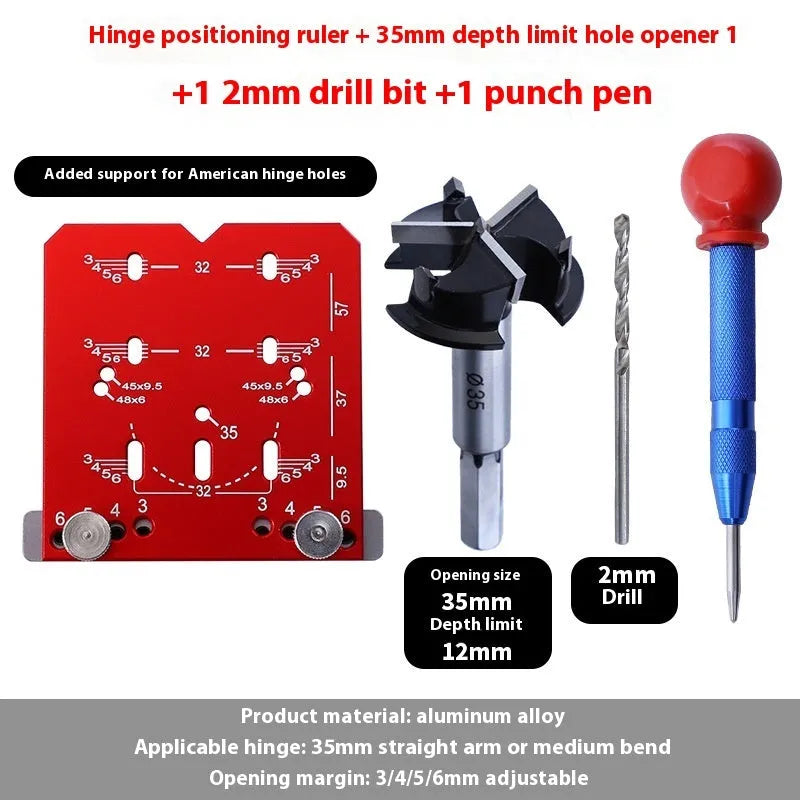

This hinge locating tool is designed for household woodworking DIY projects, specifically targeting the accurate installation of 35mm extended arm and middle bend hinges on cabinet doors, wardrobes, and other fitted furniture. Its core function is to eliminate measuring guesswork by providing a physical guide for consistent hinge placement. The tool features an adjustable margin ruler that can be set to four precise opening distances: 3mm, 4mm, 5mm, or 6mm, allowing it to accommodate different hinge types and installation preferences. Paired with a heat-treated hard alloy tapper blade, it offers a complete solution for marking and preparing screw points, aiming to speed up fitting tasks while improving accuracy for home improvers and DIY enthusiasts working on kitchen cabinets, bedroom wardrobes, or built-in storage.

Features and Construction

The tool's construction focuses on providing a stable, accurate base for marking hinges. Its design integrates specific measurements and material choices aimed at practical use in a home workshop environment.

Material and Build

The main body of the hinge locating ruler is made from aluminium alloy, selected for its combination of light weight and structural stability. This material helps keep the tool easy to handle during use while providing a firm base for the adjustable margin guide. The included tapper is constructed from hard alloy, a material known for its resistance to wear. This blade has undergone a high-temperature heat treatment process, which increases its hardness and helps maintain a sharp cutting edge over multiple uses, making it suitable for marking various wood types encountered in cabinet making.

Size and Practical Fit

The tool is engineered to work specifically with 35mm cabinet hinges, a standard size for many extended arm and middle bend hinges used in kitchen units and wardrobe doors. The adjustable margin component allows the user to select an opening distance of 3mm, 4mm, 5mm, or 6mm, providing flexibility to match the requirements of different hinge models or personal installation preferences. This adjustability means a single tool can be used for various projects, from fitting new wardrobe doors to installing kitchen cabinet hinges, where consistent margin settings are crucial for proper door alignment and swing.

Uses and Placement

This tool addresses common challenges in fitting hinges accurately and efficiently. It is designed for scenarios where precise repetition is needed, such as installing multiple cabinet doors in a kitchen or fitting a set of wardrobe doors.

Event or Professional Use

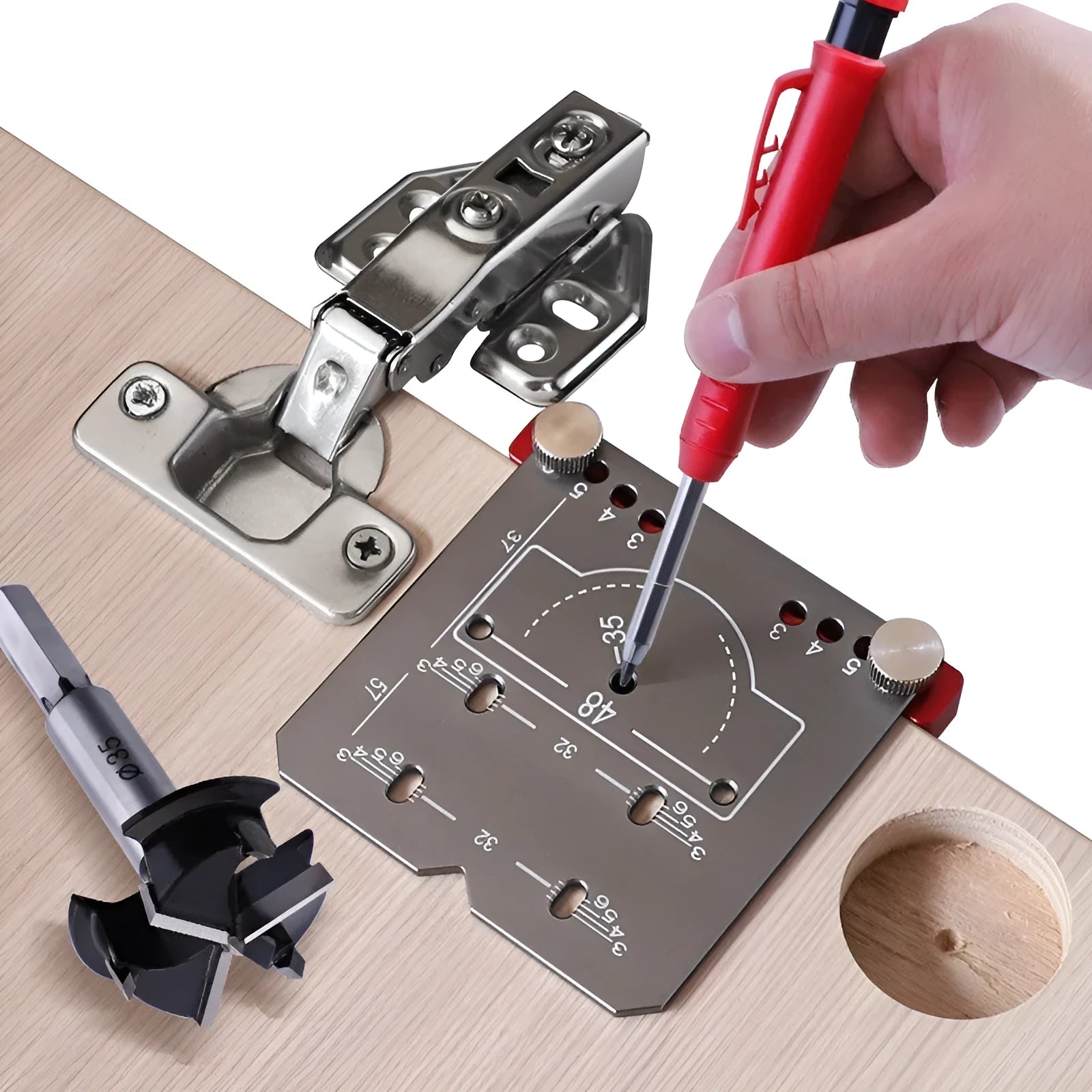

For frequent DIY projects or small-scale professional fitting work, the tool offers a repeatable method for hinge placement. The 35mm guide ensures each hinge cup is positioned correctly relative to the door edge, while the selected margin setting (3mm, 4mm, 5mm, or 6mm) controls the gap between the door and the cabinet frame. This consistency is valuable when installing a full set of kitchen cabinets or built-in wardrobes, where uniform gaps are important for both appearance and function. The hard alloy tapper allows for quick, clean marking of screw holes directly through the guide, reducing the need for separate measuring and pilot hole drilling steps.

Everyday Home Use

For the household user tackling a one-off cabinet fitting or door replacement project, the tool simplifies a task that often requires careful measurement and a steady hand. By providing a physical template, it helps avoid common errors like misaligned hinges or uneven door gaps. The tool is presented as suitable for home use, indicating its operation does not require specialist woodworking skills. Its application is focused on cabinet door and wardrobe hinge installation, making it a targeted solution for common home improvement jobs like updating kitchen units, fitting a new wardrobe, or repairing a misaligned cabinet door.

Benefits and Buying Value

The value of this tool lies in its ability to improve accuracy and save time on hinge installation tasks. It consolidates several steps—measuring, marking, and piloting—into a single, guided process.

Reuse and Low Maintenance

As a durable marking tool, it is designed for reuse across multiple projects. The aluminium alloy ruler is resistant to corrosion and should not warp under normal workshop conditions, maintaining its accuracy. The hard alloy tapper blade, with its heat-treated edge, is built to resist wear from repeated use on wood, meaning it should not need frequent sharpening or replacement for typical DIY workloads. Cleaning the tool after use to remove wood dust and resin will help preserve its markings and ensure the adjustable parts move freely for future projects.

Why Choose This Product

This hinge locator offers a specific solution for a common DIY challenge: accurately positioning 35mm hinges. Its key differentiators are the adjustable margin settings (3mm to 6mm) and the inclusion of a dedicated, hard-wearing tapper blade. Compared to using a ruler, pencil, and try square separately, this tool combines these functions, potentially reducing errors and speeding up the installation process. It is positioned for household users looking for a straightforward, purpose-built aid for cabinet and wardrobe fitting, focusing on practical accuracy rather than advanced or professional-grade features.
