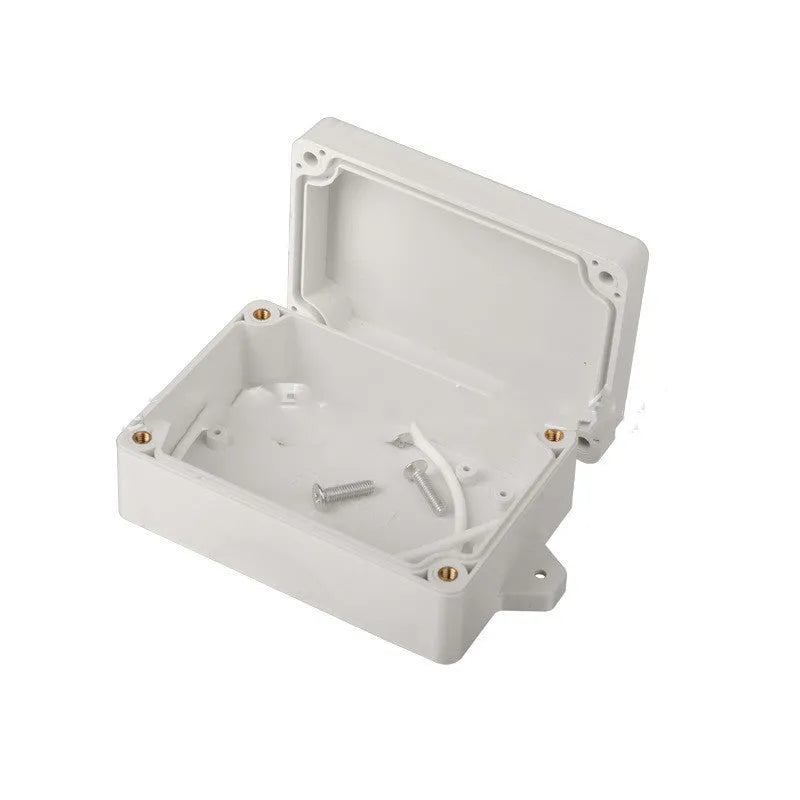

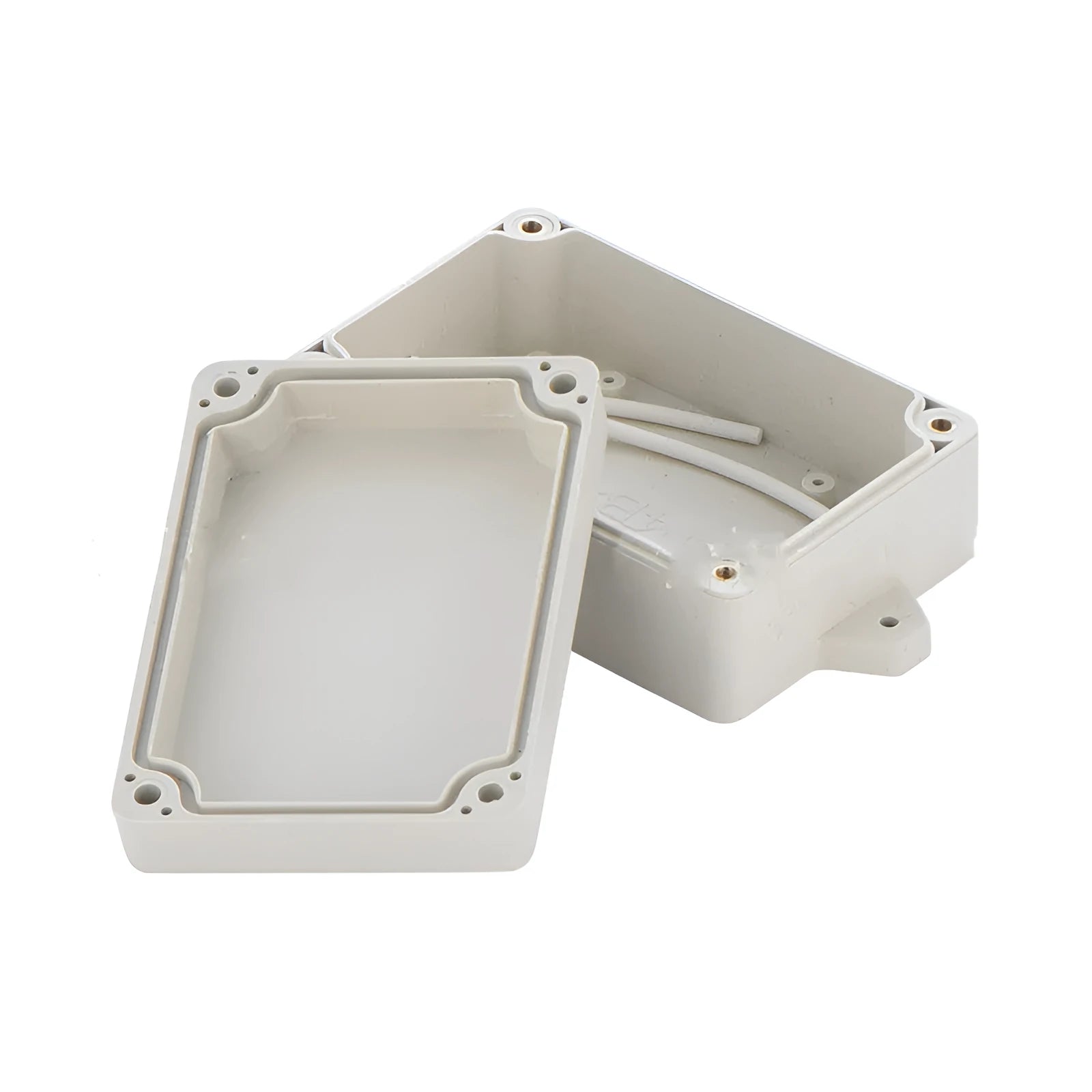

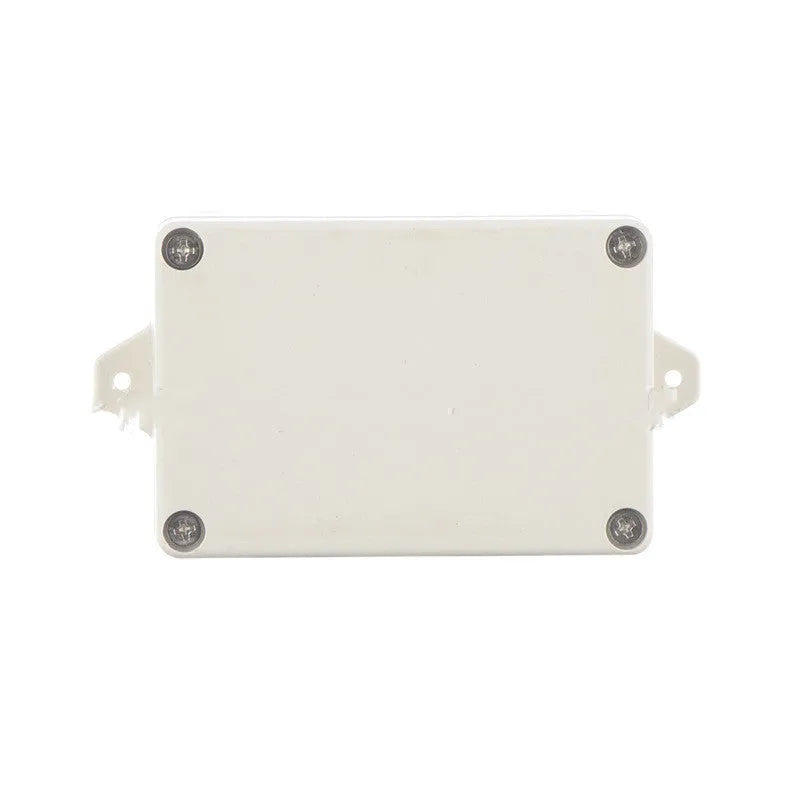

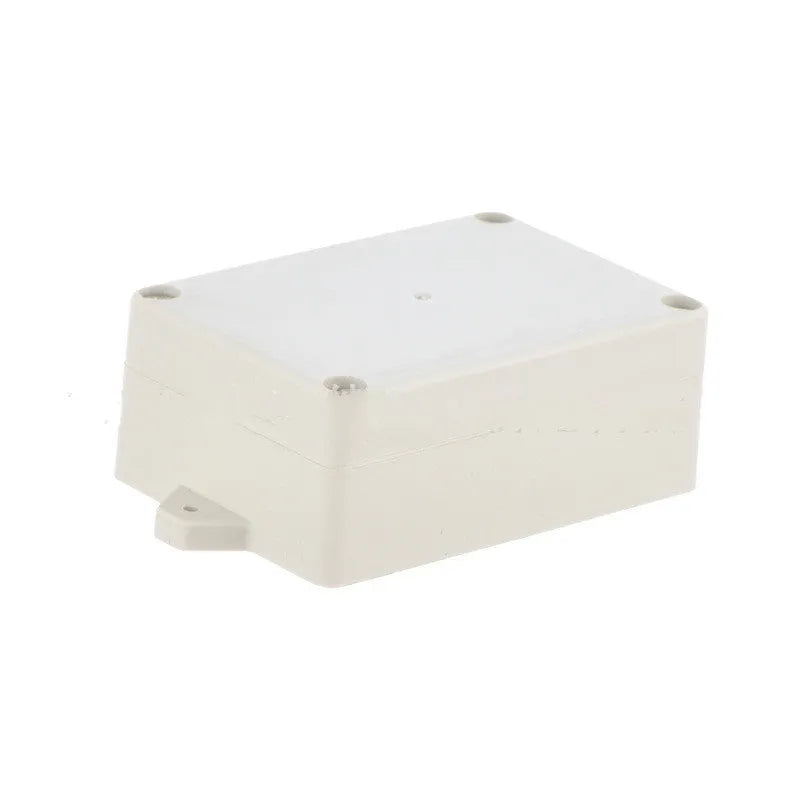

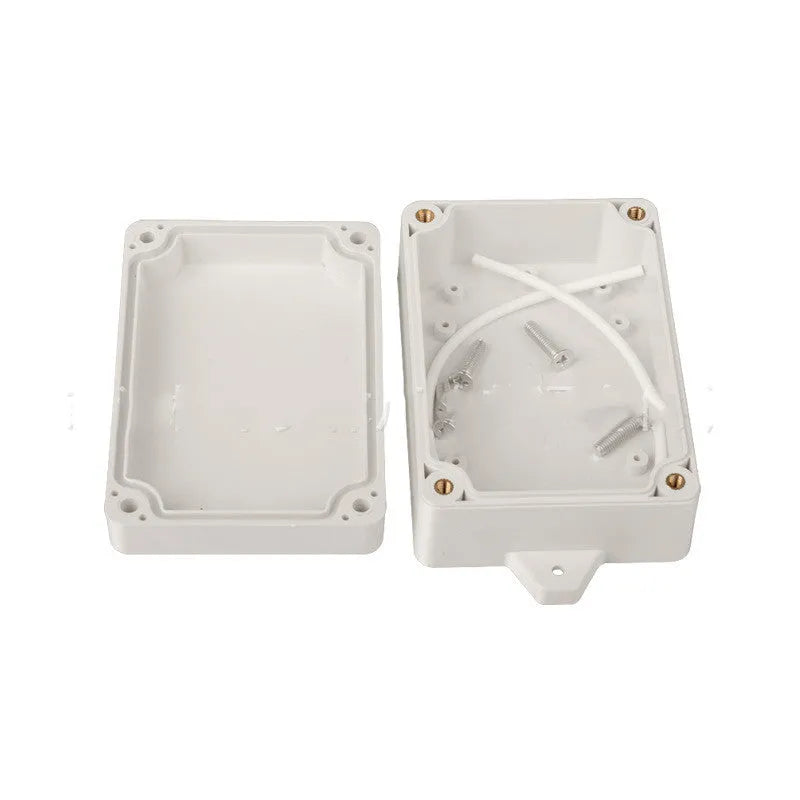

F4B-1 ABS Plastic Waterproof Junction Box for Security Monitoring and Electronic Components

This ABS plastic waterproof instrument box, designated model F4B-1, serves as a dedicated protective housing for the vital electronic components found in security systems, monitoring setups, and other technical applications. Its primary function is to shield sensitive parts like power supplies, circuit boards, and connectors from environmental hazards such as moisture, dust, and incidental physical contact. The enclosure's design focuses on delivering reliable protection in a compact form factor, making it a practical choice for installers needing to safeguard equipment in outdoor locations, industrial settings, or within machinery. By containing and organising components, it aids in system reliability and simplifies maintenance access. Its construction from ABS plastic provides a specific balance of properties tailored for this protective role, offering a solution that is both durable and manageable during installation.

Features and Construction

The F4B-1 enclosure is built with a clear purpose: to offer a sealed, protective environment for electronics. Its design incorporates standard features expected of a professional-grade junction box, focusing on practicality and fit for purpose.

Material and Build

The box is moulded from ABS plastic, a material selected for its functional characteristics in enclosure applications. ABS provides good impact strength, helping to resist cracks or damage from knocks during handling or in service. It also offers rigidity to maintain the box's shape and protect the contents within, along with a degree of resistance to weathering, which is beneficial for non-climate-controlled environments. The plastic construction inherently provides electrical insulation. The enclosure is designed to be waterproof, implying the inclusion of sealing features such as gaskets or a tight-fitting lid to prevent water ingress, a critical requirement for outdoor or damp location installations.

Size and Practical Fit

With external dimensions of 100mm in length, 68mm in width, and 40mm in depth, this enclosure presents a compact rectangular profile. These measurements dictate the maximum size of the internal cavity available for components, allowing installers to plan the layout of boards, terminals, and wiring. The relatively shallow 40mm depth suggests it is suited for housing flat components like small power supplies, relay modules, or terminal blocks rather than very tall items. This size makes it ideal for applications where space is constrained, such as on-wall mounting beside cameras, within control panels, or on mobile equipment, ensuring the protective housing does not itself become an obstruction.

Uses and Placement

The application scope for this box is centred on providing a protective shell for electronics. Its design supports both specialised professional uses and broader functional applications where component protection is needed.

Event or Professional Use

In professional technical contexts, this box is directly applicable as a waterproof junction box for security monitoring system components. It can house the power supply unit for CCTV cameras, encase sensor interface modules for alarm systems, or protect data loggers and network switches used in environmental monitoring. Its suitability for 'other shells' indicates it can also serve as a replacement or custom enclosure for various electronic devices beyond security, such as small industrial controllers, lighting system drivers, or communication equipment. The option for custom processing means it can be modified with pre-cut holes, custom markings, or specific fittings to integrate seamlessly into a larger bespoke system build.

Everyday Home Use

For domestic or small-scale applications, this enclosure offers a solution for organising and protecting electronics in demanding home environments. It could be used to create a protected housing for a garden lighting transformer, a waterproof enclosure for a DIY weather station's electronics, or a neat box for housing the wiring connections for outdoor speakers. Its neutral 'as shown' finish helps it blend into utility areas, garages, or sheds. The robust ABS construction makes it suitable for places where tools or stored items might come into contact with it, safeguarding the more fragile electronics inside from accidental damage.

Benefits and Buying Value

The value of this product lies in its focused design to solve a specific problem—protecting electronics—with a straightforward, material-appropriate construction.

Reuse and Low Maintenance

The durable ABS plastic construction is intended for long-term use. Unlike cardboard or thin plastic, it is designed to be a permanent part of an installation. Its robust nature means it can potentially be reused in different projects if components are upgraded or systems are reconfigured. Maintenance requirements are minimal; keeping the seal clean and intact is typically all that is needed to preserve its protective function. The material is also generally easy to clean with a damp cloth if it becomes dusty or dirty in service, contributing to a low upkeep profile over its lifespan.

Why Choose This Product

This F4B-1 box provides a defined solution for those needing a specific size of waterproof enclosure made from ABS plastic. Its value is in its specifications: the 100x68x40mm dimensions offer a known volume for planning, the ABS material provides a known set of physical properties, and its designation for security monitoring and other shells clarifies its intended use. It avoids the uncertainty of generic 'project boxes' by providing a model number and stated application. For installers and hobbyists alike, it represents a reliable, off-the-shelf component that removes the need to fabricate a protective case from scratch, saving time and ensuring a consistent level of environmental protection for valuable electronics.
