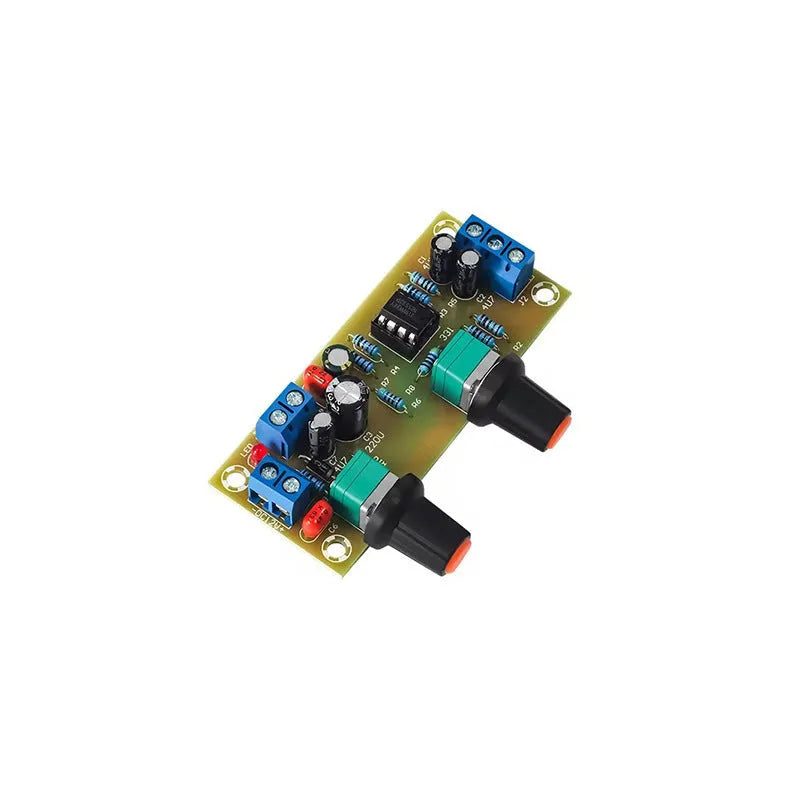

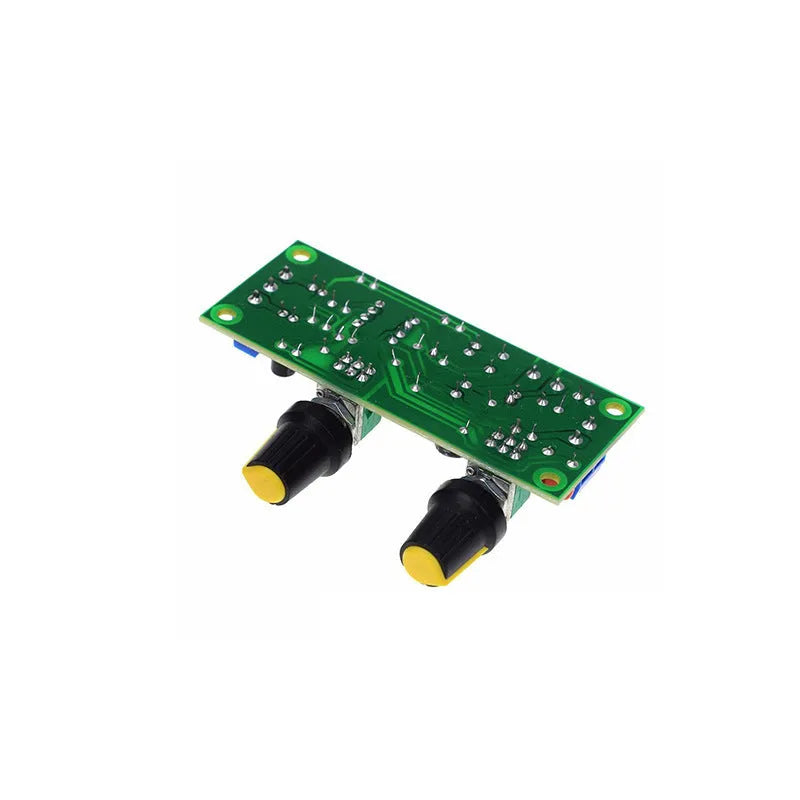

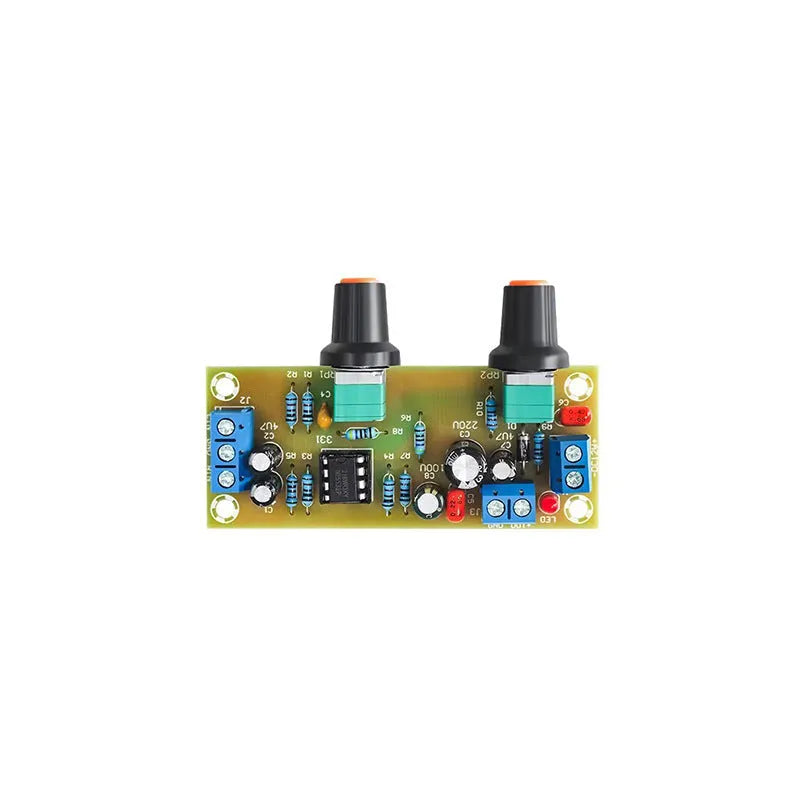

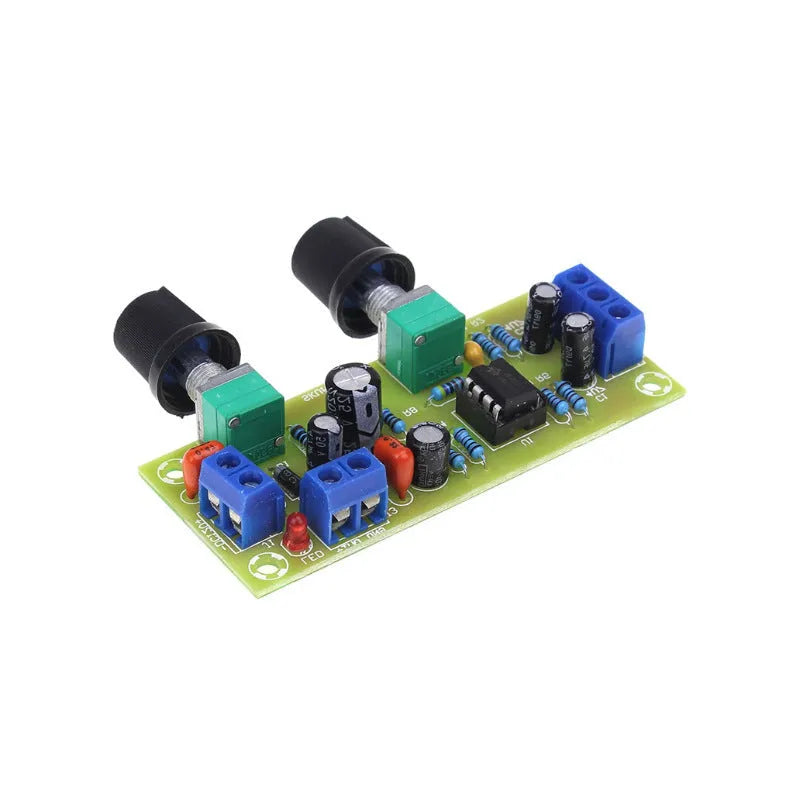

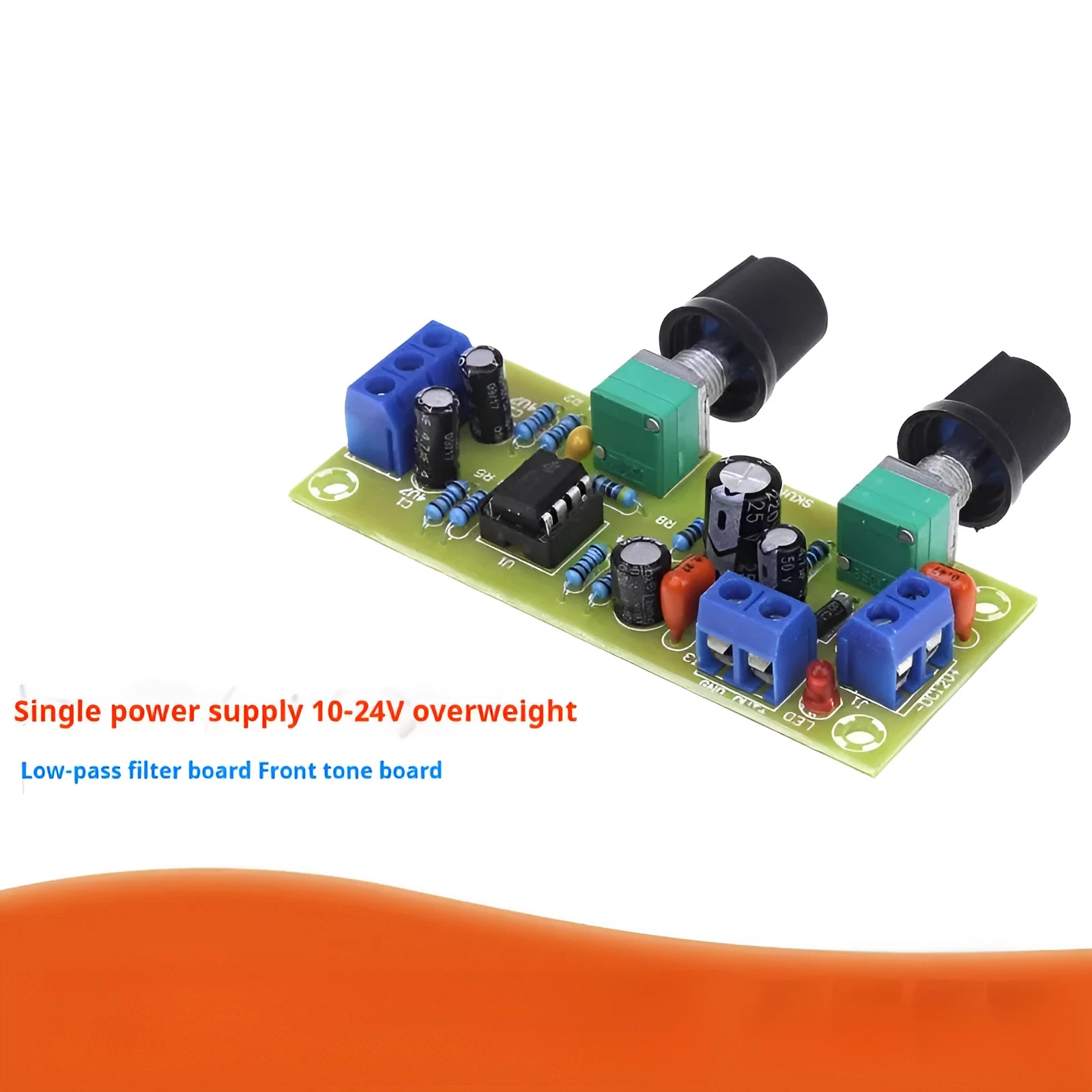

10-24V Super Dynamic Bass Boost Front Stage Board for Mono Car Audio Systems

This front stage board is designed for audio enthusiasts and installers needing to amplify low-frequency output in mono sound systems, particularly within custom car audio setups. It simplifies the amplification process by operating on a single 10-24V DC power supply, eliminating the need for more complex dual-voltage arrangements. The board specifically processes the bass spectrum, handling frequencies from 22Hz up to 300Hz, which allows it to enhance the depth and impact of music without affecting higher ranges. Its primary use case is integrating into vehicles or DIY speaker projects where a dedicated, stable DC power source is available and space for a compact, dedicated bass circuit is required.

Features and Construction

The board's design prioritises a straightforward installation and robust physical construction suitable for environments subject to vibration, such as vehicles. Its specifications are grounded in providing a practical, single-solution component for bass enhancement.

Material and Build

The circuit is printed on a super-hardness FR-4 fibre glass PCB. FR-4 is a standard, flame-retardant composite material widely used in electronics for its excellent mechanical strength and electrical insulation properties. This choice of substrate gives the board its rigidity, helping to protect the soldered components from physical stress and providing a stable platform that resists flexing, which is crucial for maintaining circuit integrity in mobile installations.

Size and Practical Fit

With overall dimensions of 78mm in length and 32mm in width, and a slim profile of just 1.6mm thick, the board is compact enough to fit into tight spaces often found behind vehicle dashboards or within speaker enclosures. It weighs a mere 30 grams, adding negligible mass to any installation. For secure mounting, the board features fixing holes with a centre spacing pattern of 70mm by 24mm; each hole has a diameter of 3.2mm, accommodating standard M3 screws. Additionally, the adjustment potentiometers are positioned with their shaft centres 32.5mm apart, allowing for accessible gain tuning once installed.

Uses and Placement

This product serves a specific niche, enhancing audio systems where a powerful, controlled bass response is desired from a mono signal path. Its application is technical but highly practical for targeted upgrades.

Event or Professional Use

While primarily aimed at automotive audio, this board could be integrated into portable PA systems or dedicated subwoofer enclosures for events where a simple, powerful bass boost from a mono signal is needed. Its 10-24V operational range offers flexibility, allowing it to be powered from a variety of DC sources like battery packs or regulated power supplies commonly used in mobile professional audio.

Everyday Home Use

For the DIY hobbyist, this board presents a project component for building or modifying a home subwoofer amplifier or enhancing the bass output of a compact mono speaker system. The clear specification for a single DC power supply makes it easier to incorporate into a custom power supply design compared to boards requiring symmetrical positive and negative voltages.

Benefits and Buying Value

The value of this front stage board lies in its focused functionality, durable construction, and the practicality it offers for a specific audio enhancement task.

Reuse and Low Maintenance

As a circuit board built on a durable FR-4 substrate, it is designed for long-term use once correctly installed and protected from physical damage or moisture. There are no moving parts to wear out, and its maintenance involves primarily ensuring secure electrical connections and a clean, dry environment, aligning with the low-care needs of solid-state electronics.

Why Choose This Product

You would choose this bass boost board if you require a dedicated, single-power-supply solution for amplifying the bass frequencies in a mono audio system, particularly in a car. Its concrete advantages are the specified 10-24V DC operational range, the defined 22Hz-300Hz frequency processing, and the robust FR-4 PCB construction. It provides a measurable upgrade path for bass response without the complexity of a full multi-channel amplifier, making it a precise tool for a specific audio improvement job.
