Music Tesla Coil Driver Board with 20cm Arc Display and Direct 220V Power Supply

This specialised Tesla coil driver board creates synchronised electrical arc displays that respond to audio input through a standard 3.5mm connection. Unlike traditional Tesla coil setups requiring complex grounding systems, this unit operates directly from 220V mains power without ground wire installation, simplifying setup for educational demonstrations, science exhibits, and visual music performances. The integrated arc extinguishing isolation device enhances operational safety, while coaxial cable signal transmission maintains clean audio data transfer. With adjustable arc lengths exceeding 20cm and compact 100×115×205mm dimensions, this system balances impressive visual display capabilities with practical portability for various installation environments.

Technical Specifications and Power Management

This driver board accommodates flexible power input scenarios with support for AC 110-240V operation, making it suitable for international voltage standards. The unit manages power delivery through precise current regulation within a 0.1A-2A working range.

Electrical Capacity and Output

With a 200VA product capacity and 250W average power rating, this Tesla coil driver provides sufficient energy for sustained arc generation while maintaining electrical efficiency. The direct 220V power connection eliminates intermediary transformers or multiple power supplies, reducing setup complexity and potential failure points. This single-cable solution connects directly to standard wall sockets, enabling immediate operation once proper safety protocols are established.

Signal Transmission and Audio Integration

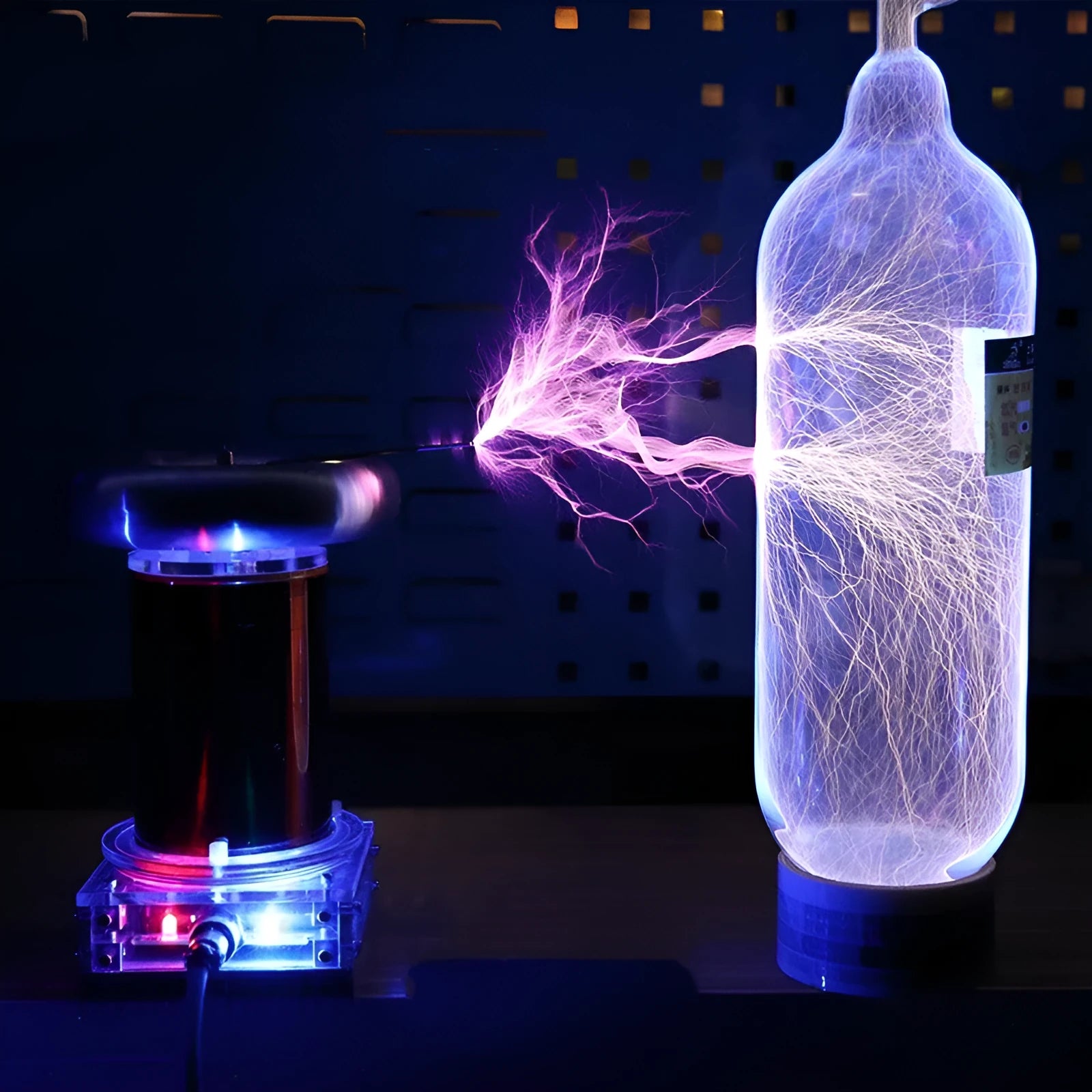

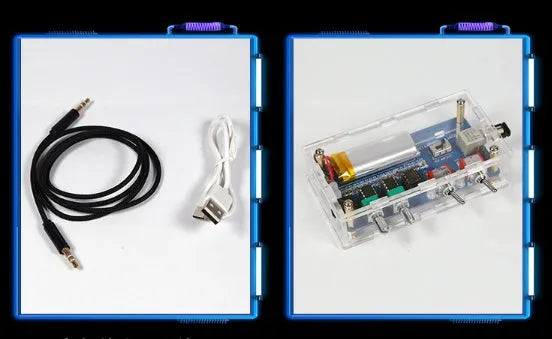

Coaxial cable implementation ensures minimal signal degradation between audio sources and arc modulation components, preserving musical fidelity in visual arc patterns. The 3.5mm audio port accepts input from various devices including smartphones, computers, and audio players, allowing synchronisation of arc intensity and frequency with musical waveforms. This creates the distinctive 'singing Tesla coil' effect where electrical discharges appear to dance in rhythm with the connected audio source.

Setup and Operational Procedures

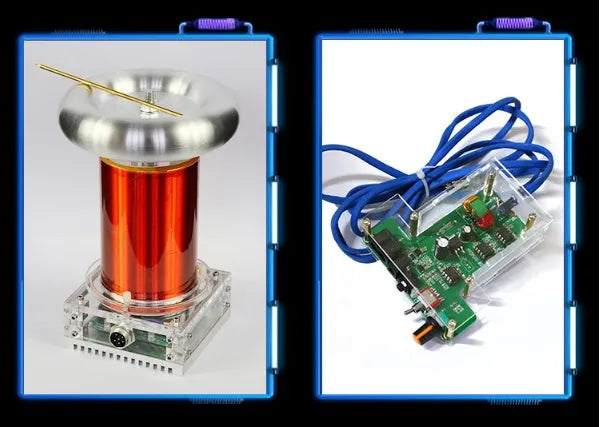

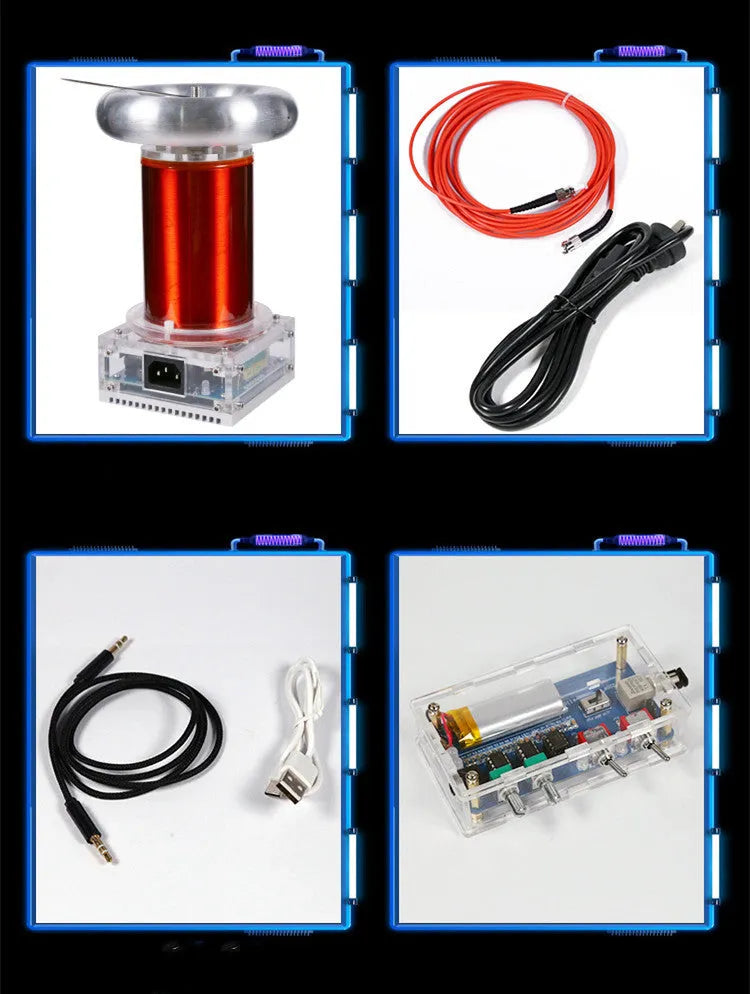

Proper installation follows specific sequential steps to ensure both optimal performance and user safety. The included fibre optic connection between main unit and controller provides electrical isolation while transmitting control signals.

Physical Assembly and Connection

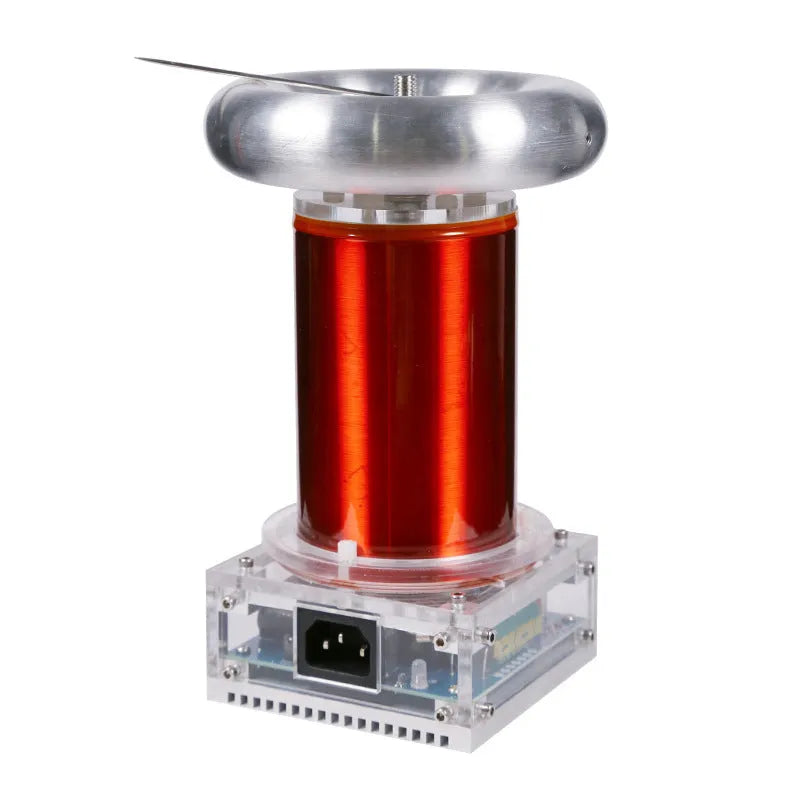

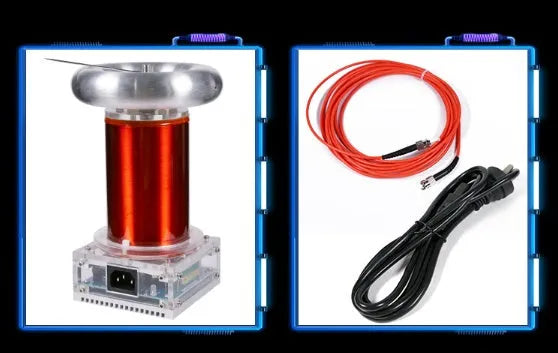

Begin by placing the provided thimble on the pressure equalisation ring at the unit's top, extending the tip approximately 2-3cm beyond the ring for optimal arc formation. Connect the fibre optic cable between product body and controller, noting the bump on the connector head that requires rotation before insertion rather than forceful pushing. This deliberate connection method protects delicate optical components while establishing secure communication between control interface and power modulation systems.

Power Sequencing and Arc Control

Connect the 220V power cable to the host unit before linking to a wall socket, then turn the controller switch to the on position. Arc generation begins by rotating the potentiometer from its mandatory zero starting position, with brightness adjustment available before arc initiation. The counterclockwise knob turn sequence for arc extinguishment provides controlled shutdown procedures, while the 0.5m minimum safety distance (1m recommended) ensures observer protection during operation.

Safety Considerations and Usage Parameters

This high-voltage demonstration equipment requires strict adherence to operational guidelines to prevent electrical hazards. The integrated safety systems provide protection layers when used within specified parameters.

Operational Limitations and Duration

Limit continuous operation to 3-5 minute intervals with musical playback restricted to 2-3 minutes per session to prevent component overheating and maintain system longevity. These duration guidelines balance impressive display capabilities with responsible thermal management for the solid-state Tesla coil (SSTC) design. Always power the unit completely down between demonstration sessions, allowing cooling periods that correspond to usage duration.

Hazard Prevention and Observation Guidelines

Never touch the coil or voltage equalisation ring while the product is energised, as high-voltage discharges present serious electrical shock risks. The arc extinguishing isolation device provides additional safety by interrupting arcs under certain conditions, but does not eliminate fundamental high-voltage hazards. Ensure all observers maintain the 0.5m minimum distance, with greater separation recommended for extended viewing sessions or group demonstrations.
